Ok, I have done some Google-fu and I have had no luck finding a wiring diagram to help me with my Squier bullet (2 wires came loose). Anyone know where I can find one? Im itching to play it again....
And if theres not a diagram, I could post a pic of the 2 loose wires...
Where to find a wiring diagram for my Squier Bullet....
Re: Where to find a wiring diagram for my Squier Bullet....
Thanks, but I need a color diagram, there are yellow, blue, white, black, and grey wires in this thing.
Heres some pics of the 2 loose wires....
Ths one is attatched to the pick-up selector....dunno where it goes.

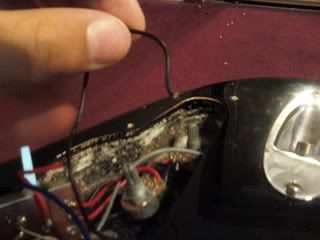

This black wire goes back where the bridge is...No clue where its supposed to go

Heres some pics of the 2 loose wires....
Ths one is attatched to the pick-up selector....dunno where it goes.

This black wire goes back where the bridge is...No clue where its supposed to go

- Nuno
- Guitarnoise Addict
- Posts: 4058
- Joined: October 7th, 2006, 4:10 am
- Location: Madrid, Spain
- Contact:
Re: Where to find a wiring diagram for my Squier Bullet....
Usually black is used for ground. The red one could be from the pickup selector to the one of the pots.
Has the guitar humbuckers or they are all single-coils? If they are single-coils the diagram is right for you. You only need to follow the lines and check which is loose.
Has the guitar humbuckers or they are all single-coils? If they are single-coils the diagram is right for you. You only need to follow the lines and check which is loose.
Re: Where to find a wiring diagram for my Squier Bullet....
That switch isn't going to be a great asset anyhow - it's a little harder to work with and not as smooth as the Cortek.
I think that's a Cortek shown in the good diagram sent in by Scrybe and your version went and lowered the bar more?
I believe the red goes to the output lug from your volume control. Not the grounded one, not the centre, the last one.
The black ground wire goes to the claw that holds the springs from your trem block, in the back beneath the trem cover.
I recommend that you buy a Grigsby, Stew Mac, American Fender or Mexican switch and rewire to Standard specs onsite.
http://www.fender.com/support/wiring_di ... _lists.php

I think that's a Cortek shown in the good diagram sent in by Scrybe and your version went and lowered the bar more?
I believe the red goes to the output lug from your volume control. Not the grounded one, not the centre, the last one.
The black ground wire goes to the claw that holds the springs from your trem block, in the back beneath the trem cover.
I recommend that you buy a Grigsby, Stew Mac, American Fender or Mexican switch and rewire to Standard specs onsite.
http://www.fender.com/support/wiring_di ... _lists.php
Like a bird on the wire,
like a drunk in a midnight choir
I have tried in my way to be free.
like a drunk in a midnight choir
I have tried in my way to be free.
Re: Where to find a wiring diagram for my Squier Bullet....
Thank for the help...I think you were right. I saw 2 spots where ther was solder but no wire...I put the wires to them, plugged her up, and tapped the pickups. So I re-soldered that, went to my local shop, got some strings, and she works
At last I am re-united with my only thing to do all day long
.
Thanks for the help guys

At last I am re-united with my only thing to do all day long

Thanks for the help guys
